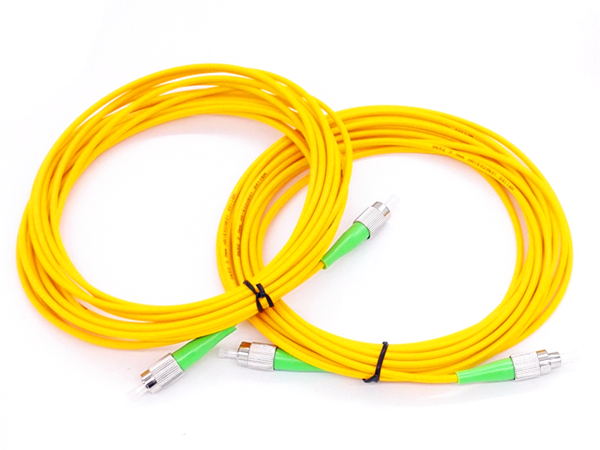

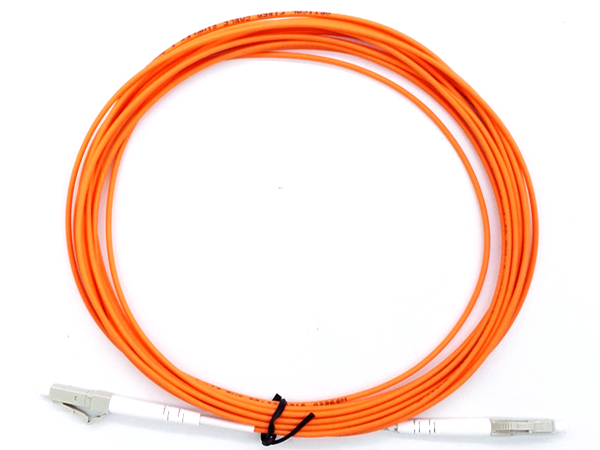

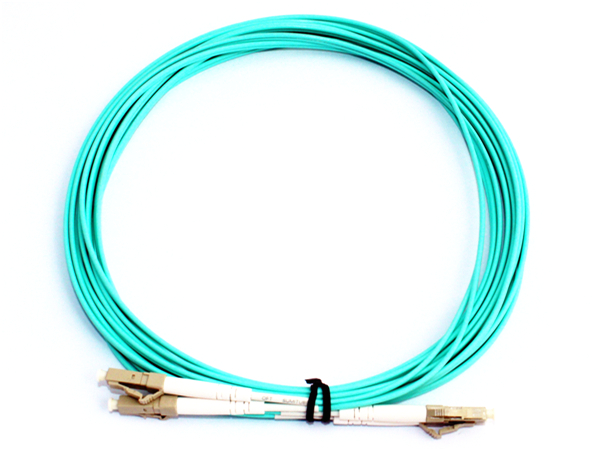

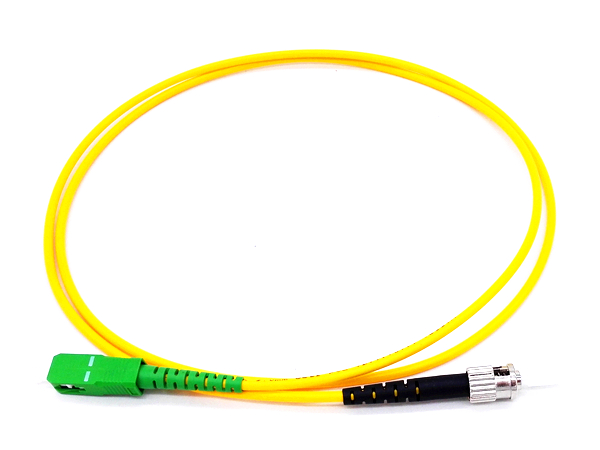

SC/LC/FC/ST Fiber Optic Patch Cable

Fiber Optic Patch Cable, also called fiber jumper or optical patch cord, is composed of fiber optic cable terminated with connectors on both ends. The pigtail is a length of optical cable terminated with connector at only one end.


Offer a wide variety of fibre optic patch cable options:

   ---fiber type: SM (G652D, G657A, Hi 780) & MM (OM1, OM2, OM3, OM4, OM5)

   ---fiber count: simplex, duplex, multi-fiber (fan-out or break-out)

   ---connector: FC/ SC/ LC/ ST/ MU/ E2000(LSH)

   ---ceramic ferrule: UPC, conical APC and step APC

   ---cable diameter: 0.9mm, 2mm, 3mm

   ---cable length: any length

   ---jacket type: PVC, LSZH, OFNR, OFNP

   ---jacket color: blue, orange, green, brown, gray, white, red, black, yellow, purple, pink, aqua

 Good reliability, stability and interchangeability

 3D-geometry interferometer test can be provided upon request

 100% strict inspection and testing before delivery

 Telcordia GR-326-CORE and RoHS compliant



 Pull-proof Jacket

Immune to Electrical Interference

 Customized cable print text, mark ring, label and package are available

 Special fiber patch cable for choice: mode conditioning, waterproof, loopback, armored, bend insensitive

 Use in High-speed, high bandwidth transmissions over Gigabit Ethernet and fiber channel networks

 Suitable for fiber optic interconnect in patch panels, hubs, switches, routers

 Ideal solution for test equipment, military industry, broadband system, telecommunication
