PLC Splitter

PLC Splitter is used to separate or combine optical signals. It is a passive optical power management component based on planar lightwave circuit (PLC) technology. It provides a low cost light distribution solution with small form factor, low insertion loss, low PDL and high reliability.

PLC Splitters are suitable for FTTx, GPON, EPON, CATV system, fiber optic equipment and WDM system.


Wide operating wavelength range from 1260nm to 1650nm

 Available port configurations (Input x Output):

   ---1xN series (1x2, 1x4, 1x8, 1x16, 1x32, 1x64)

   ---2xN series (2x2, 2x4, 2x8, 2x16, 2x32, 2x64)

 Equal split ratio for all output ports

 Available with 250µm ribbon bare fiber and 0.9mm, 2mm, 3mm loose tube fiber

 Available unconnectorized or with any fiber optic connector: LC/APC, LC/UPC, SC/APC, SC/UPC, FC/APC, FC/UPC, etc.

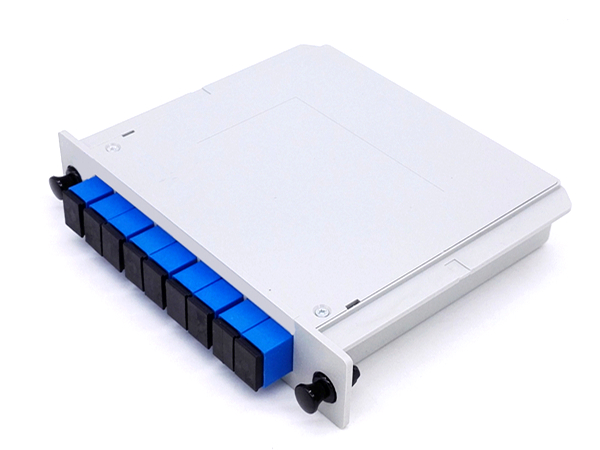

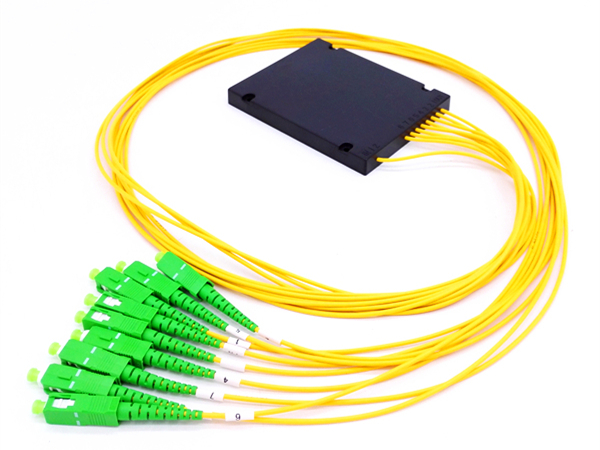

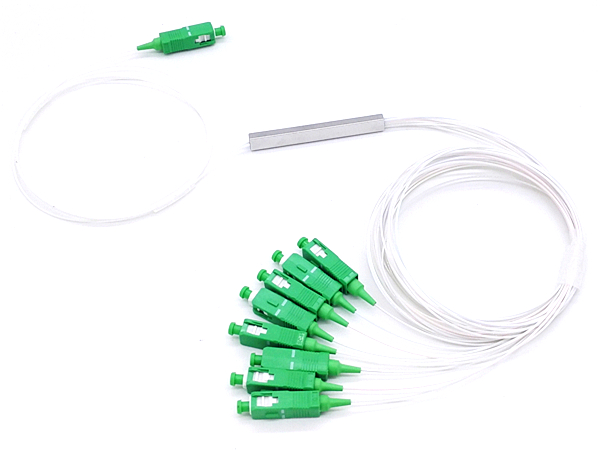

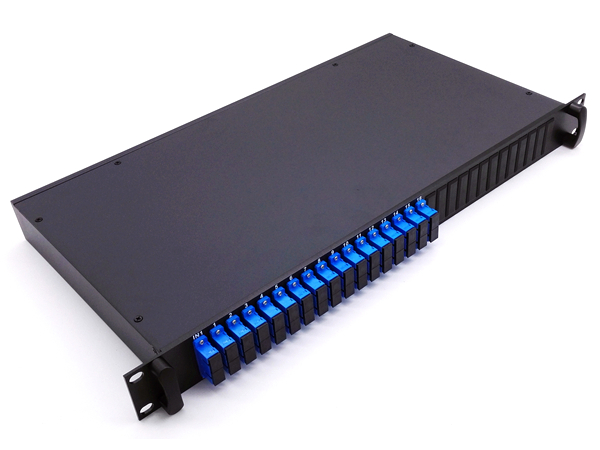

 Various package type: steel tube (blockless), ABS box, cassette box, metal module, LGX, rack mount



 Available fiber type: G652D, G657A and multimode

 Wide operating temperature range from -40°C to +85°C

 Excellent Environmental & Mechanical Stability

 Using high-quality chip, fiber array, optical fiber, connector and adapter to ensure the stability of signal transmission

 Provide customized services to meet the requirements and application of different customers

 Telcordia GR-1221-CORE and RoHS compliant
