1310/1490/1550/1625nm Filter WDM

1310/1490/1550/1625nm Filter WDM (FWDM) can realize the multiplexing and demultiplexing of wavelengths carring voice, data and video signals. It utilizes thin film filter (TFF) technology and epoxy-free on optical path.

The filter WDMs are widely used in FTTH triple-play system, EDFA, Raman amplifiers, CATV system, fiber lasers, WDM network, bidirectional communication and fiber optic instrument.



■ Low insertion loss & PDL

■ High channel isolation

■ Wide operating wavelength range

■ Excellent environmental stability and reliability

■ Various connectors are available - LC/APC, LC/UPC, SC/APC, SC/UPC, FC/APC, FC/UPC, etc.

■ Available with 250µm bare fiber and 900µm, 2mm, 3mm loose tube fiber

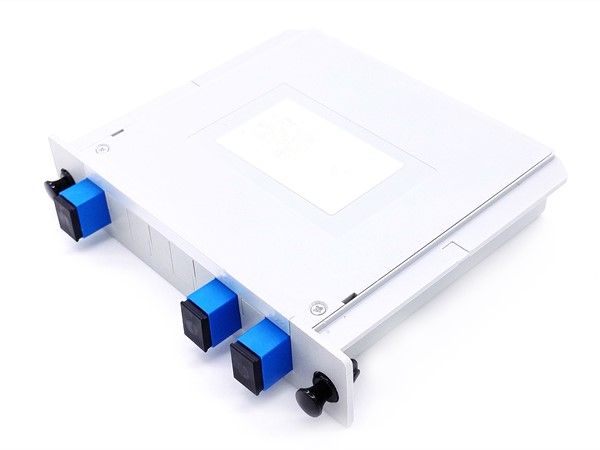

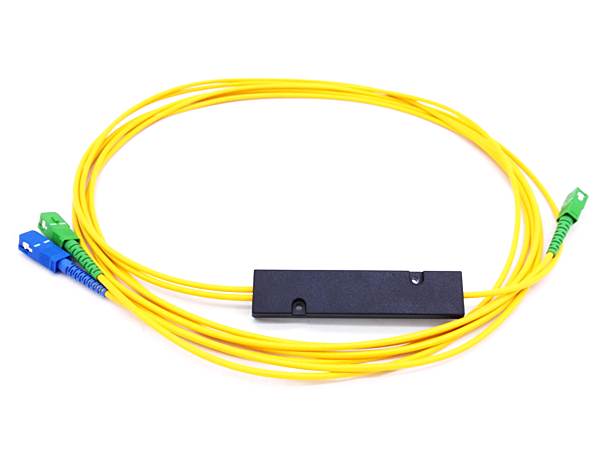

■ Various package type: steel tube, ABS box, cassette box, metal module, LGX, 19" 1U rack





■ Using high-quality fiber optic filter, collimator, connector and adapter to ensure the stability of signal transmission

■ Provide customized services, including but not limited to the number of wavelengths, isolation desired, bandpass characteristics, power levels and package type

■ Telcordia GR-1209-CORE and RoHS compliant
