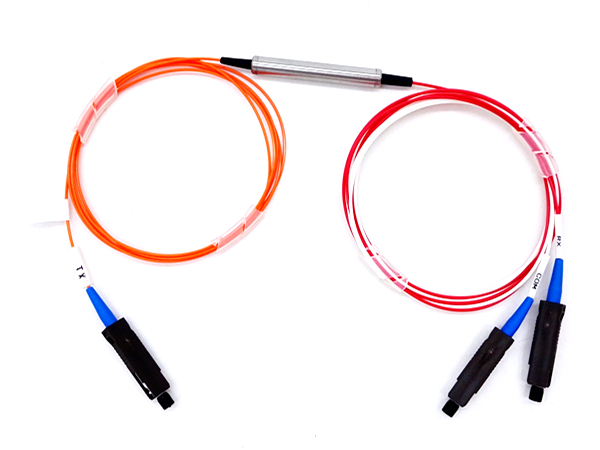

Based on thin-film filters technology and epoxy-free optical patch, the filter splitter can realize the distribution or combination of optical signal power among different optical fibers.
The filter splitter has the characteristics of low excess loss, more accurate split ratio and high reliability. It is widely used in CATV system, online monitoring system, RF over Fiber, multimode fiber system, testing instrument and optical path redundancy system.
|
|
|
■ Stable split ratio with various light sources ■ Various split ratio: 1:99, 3:97, 5:95, 10:90, 20:80, etc. ■ Available fiber type: OM1, OM2, SMF-28e, SMF-28e XB, HI1060 FLEX ■ Available with different operating wavelength: 850nm, 980nm, 1310nm, 1550nm |
|

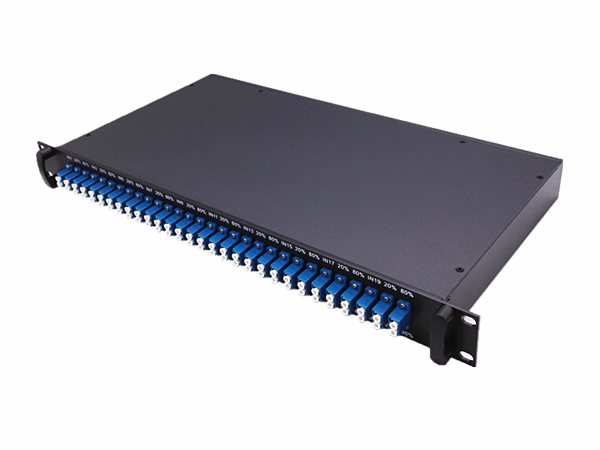

■ LC/FC/SC/ST/MU/E2000/MTP connector optional ■ Available with 250µm bare fiber and 900µm, 2mm, 3mm loose tube fiber ■ Various package type: steel tube, ABS box, cassette box, metal module, LGX, rackmount chassis ■ Provide customized filter splitters with a high degree of flexibility to suit your precise requirements and application ■ Telcordia GR-1209-CORE and RoHS compliant |
|
|
