FBT (Fused Biconical Taper) Splitter, also known as fiber optic coupler, is a device that realizes the distribution or combination of optical power among different optical fibers. It could split the optical power transmitted in one fiber into multiple fibers by a certain coupling ratio, or combine the optical power transmitted in two or more fibers into one fiber.
For example, when a fiber optic light beam is transmitted through the 1x2 20/80 Single Mode FBT Splitter, it will be divided into 2 beams, one of which is 80% of the original source and another is 20%.
The FBT Splitters are designed for power distribution and tapping in optical fiber amplifier, online monitoring system, PON (passive optical network), OCT medical imaging and CATV solution.
|
|
|

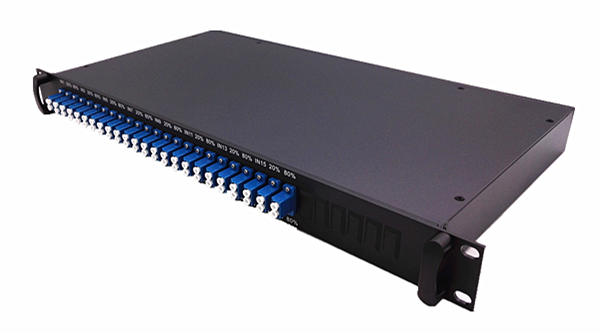

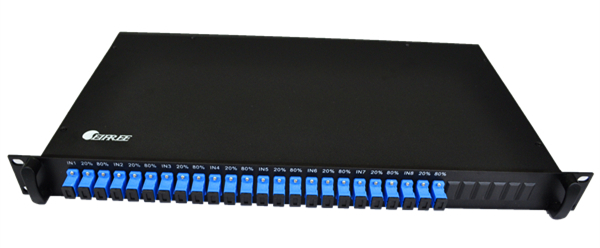

■ 1x2 and 2x2 optical splitter are available in many split ratios, including: 1:99, 10:90, 20:80, 30:70, 40:60, 50:50, etc. ■ Available with different operating wavelength, such as 1310nm single window, 1310nm&1550nm dual window, 1310nm&1490nm&1550nm triple window ■ Available with 250µm bare fiber and 900µm, 2mm, 3mm loose tube fiber ■ Available unconnectorized or with any fiber optic connector: LC/APC, LC/UPC, SC/APC, SC/UPC, FC/APC, FC/UPC, etc. ■ Offer a variety of package, including steel tube, ABS box, metal module, rackmount |
|
■ High-density compact design saves space ■ Using high-quality optical fiber, connector and adapter to ensure the stability of signal transmission ■ Provide customized services to meet the requirements and application of different customers ■ Telcordia GR-1209-CORE and RoHS compliant |
|
|
